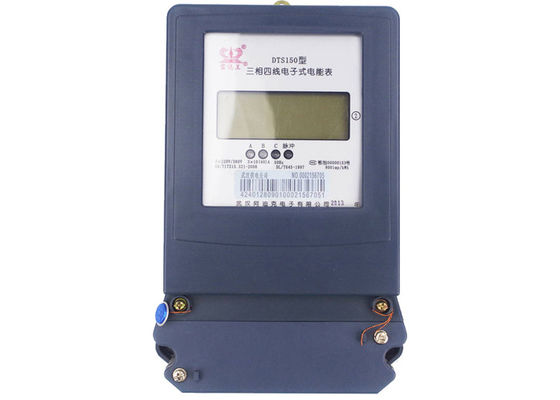

Industrial Electricity Three Phase Electric Meter Static 3P4W Meter With LCD Display

Industrial Electricity Three Phase Electric Meter Static 3P4W Meter With LCD Display
Industrial Electricity Three Phase Electric Meter Static 3P4W Meter With LCD Display

Large Image :  Industrial Electricity Three Phase Electric Meter Static 3P4W Meter With LCD Display

Product Details:
Place of Origin: Made In China
Brand Name: Radarking
Certification: IEC62053-21; IEC62052-11; IEC62053-23;
Model Number: DTSF150
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiate
Packaging Details: Standard Package
Delivery Time: 35days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 5000000 pcs per year
Detailed Product Description
Refer. Voltage: 3* 230V/400V Refer. Current: 3*5(60)A
Frequency: 50Hz/60Hz Data Storage Period: 10 Years
Display Type: Digital Only Standard: IEC62053-21; IEC62052-11; IEC62053-23
High Light:

three phase power meter

,

three phase smart meter

Industrial Electricity Three Phase Electric Meter Static 3P4W Meter With LCD Display



1. Main Features

  • Have three tariffs, may select 12 daily period of times. You can set the date arbitrary which can automatic read the meter every month. May select single tariff function in weekend. Work with battery, keep data more than 10 years
  • There is a clock and Maintenance-free backup lithium batteries in it. Battery capacity detection and display all the time. It can ke ep the electrici ty data for 12 months. The data can be kept forever after power cut off.
  • May select cycle display (default) or push the button itemized display, we can set the cycle display i,t can display 14 data at most. Can select the data which displayed. The decimal median which displayed can choose set one or two.
  • There is a pola rity port of pulse output passive closed and a no polarity port of pulse output passive distant, the output rate is 10 or 100 imp/kWh (can select),Complying with standard IEC 62053-31.
  • There are far i nfrared and a p ort of RS485 communication data. It is use for setting and reading the meter.
  • Set and operation have password protection, communication protocol complying with standard DL/T645-1997.
  • The LED instructions respectively power state, signal of power impulse, the direction of the trend of load current, the state rates just now and the data communications state. Three components measure three phase four wire active power consumption. It is nothing with direction of the trend of load current. Complying with standard IEC 62053-21.
  • Standard configuration for direct connect and use, type A connection, we can also choose another type of connection, and use CT.
  • Standard configuration short terminals cover, may select extended terminals cover, in order to protect to use electricity safely.

2. Technical parameters



Model Accuracy

Reference

Voltage (V)

Current

Specifications(A)

Starting Current

(Ib)

Insulation Performance
DTSF150 Class 1 3*220/380

5(30)

10(60)

20(100)

0.02

0.04

0.08

AC voltage 4KV for 1 minute,

1.2/50us waveform impulse

voltage 8KV
