GPRS / PLC Automatic Meter Reading System AMI Solution For Data Collection / Management

China GPRS / PLC Automatic Meter Reading System AMI Solution For Data Collection / Management supplier

Large Image :  GPRS / PLC Automatic Meter Reading System AMI Solution For Data Collection / Management

Product Details:

Place of Origin: China
Brand Name: Radarking
Certification: IEC
Model Number: Radarking-E4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: With meters in carton or in memory card
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 700000 sets/year
Contact Now
Detailed Product Description
Product Name: Remote Meter Reading System OS: Windows Linux
Database: SQL ORACLE Operation: Multi-threaded Transaction
Framework: Standalone BS CIS Communication: Internet, Intranet, LAN / WAN

GPRS/PLC Automatic Meter Reading System AMI Solution for Data Collection and Management



Summarize
The remote meter reading system which is easy to be installed and debugged is an automatic addressing system, all terminal unit data sent to concentrator respectively by two wires non-polar M-bus cable, and collected, saved,statistical analyzed by data processing center which get data from concentrator via GPRS/Ethernet.

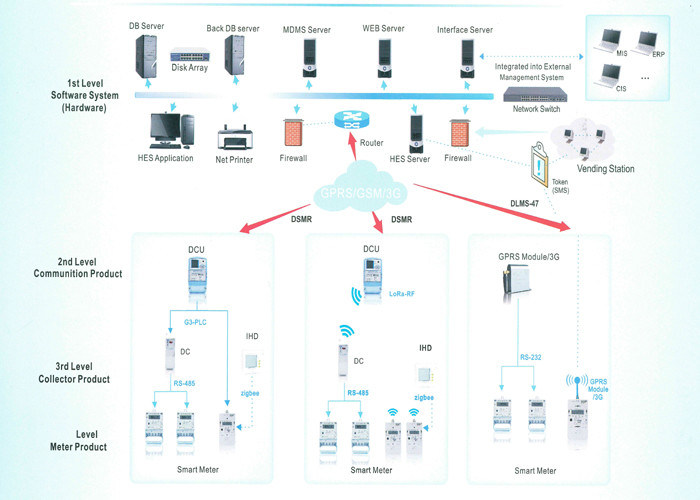

System configuration

The AMR system is composed with management software and hardware device.



Management software: a data processing center collecting, saving, statistical analyzing all terminal unit data and daily operations for administrators.




Communication channels
M-bus / RS485 cable from meters to concentrator
GPRS/Etherne from concentrator to data processing center





AMI electricity meter Specification Datasheet



Parameter

1 Phase 3 Phase

Nominal voltage

110/120/220/230/240V

Un (40%- 130%)

3x110/120/220/230/240V Un(30%- 135%)

Norminal current

5(60)A 10(100)A

Connection type

Whole current / CTVT connection Whole current / CTVT connection

Maximum current

80A 100A

Frequency

50Hz 50Hz

Accuracy class

IEC Class.1 IEC Class.1

Voltage circuit burden

≤1.5W & 1.2VA ≤1.5W & 5VA

Current circuit burden

≤0.2VA ≤0.5VA

Protective class

IP 54 as IEC 60529 IP54 as IEC 60529

Insulation class

6kV Class II 6.5kV Class II

Surge immunity

4 kV 4.3kV

Electrostatic discharge

15kV 16kV air discharge

Immunity to HF fields

80MHz to 2GHz@30V/m 80MHz to 2GHz@30V/m

Fast transient burst

4.3kV 4.3kV

Radio interference

As CISPR22 As CISPR22

Battery life without power

10 years 10 years

Dimension

160mmx112mmx71mm 290mmx170mmx85mm

Weight

Approximate 0.7kg

Approximate 3kg





Radarking's R&D Group

A R&D group of more than 30 persons, about 15% of company employees.
