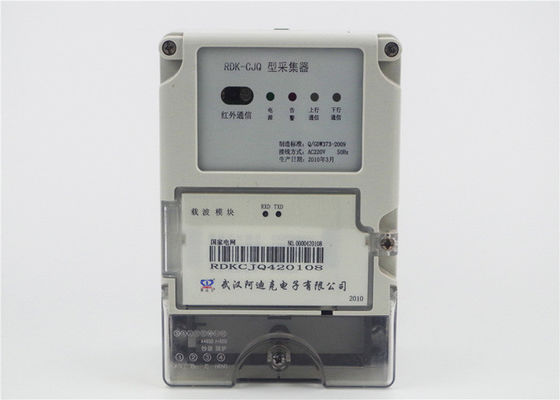

LCD Display Wifi / PLC Data Collection , RS485 Remote Meter Reading System

LCD Display Wifi / PLC Data Collection , RS485 Remote Meter Reading System
LCD Display Wifi / PLC Data Collection , RS485 Remote Meter Reading System

Large Image :  LCD Display Wifi / PLC Data Collection , RS485 Remote Meter Reading System

Product Details:
Place of Origin: China
Brand Name: RADARKING
Certification: IEC
Model Number: DCXL12-RDK15
Payment & Shipping Terms:
Minimum Order Quantity: 20 pcs
Price: Negotiable
Packaging Details: Standard Packing in Carton
Delivery Time: 20-30 Working Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 700000 pcs/year
Detailed Product Description
Up Link: PLC Or Wifi Down Link: RS485
Power Supply: AC 220V Feature: Data Collecting
Display: LCD Current: 1.5(6)A
High Light:

Remote Meter Reading System

,

Wireless Meter Reading System

Data Collector in Automatic Meter Reading System for DLMS Communication AMR System



Main Features

  • Uplink channel: communication between concentrator and master

Data transfer communication for GPRS, Ethernet
Direct connection for RS-485 serial port
Direct connection for USB
Infrared communication mode

  • Downlink channel: communication between concentrator and smart meter

Direct connection for RS-485 serial port*3

  • Data acquisition

Real-time meter reading
Reading daily frozen energy
Reading historical daily & monthly consumption
Reading event
Reading meter parameter, status, and real-time data

  • Operation & control

Remote switch on &off
Prepaid & energy threshold control

  • Events Log

Setting & record abnormal events: Power-down, Programing, Cover opening, Terminal cover opening, Reverse power, Phase Fail. The records include data and time

  • Storage capacity

1024 Meter database capacity
2 months capacity for storing daily frozen data in meter
12 months capacity for storing monthly consumption in meter
Temporarily storing real-time reading data

  • Terminal maintain

Auto-detect and recovery
Terminal initialization
Remote transmission
Resuming broken transmission





Technical parameters:

Electrical parameters:
Voltage
Nominal voltage Un 220V
Extended operating voltage range 80%~115%Un
Limited voltage 70%~120%Un
Frequency
Nominal frequency fn 50Hz
Tolerance -6%~2%
Current
Basic current(Ib) 1.5(6)A
Maximum current(Imax) 6A
Starting current(Ist) 3mA
Active energy constant 6400imp/kWh
Measurement Accuracy
Active energy 1%
Reactive energy 2%
Power Consumption
Power consumption in Voltage circuit <10W <8VA
Power consumption in current circuit <1VA
Temperature range
Working temperature -30ºC to+70ºC
Limited working temperature -40ºC to+80ºC

Insulation strength
AC Insulation strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50μs mains connections 8kV

Electro Magnetic Compatibility
Electrostatic discharges
Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF fields
27MHz to 500MHz typical 10V/m
100kHz to 1GHz typical 30V/m
Fast transient burst test 4kV

Mechanical requirements
Meter shell Protection Rate IP51
Protection classII
