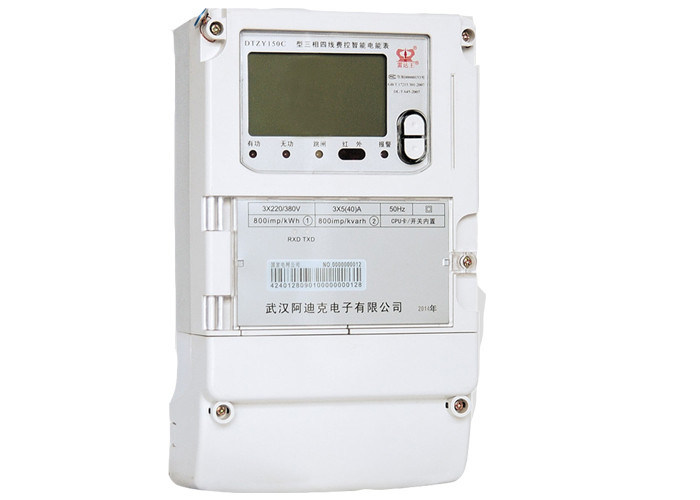

DLMS / COSEM Three Phase Smart Meter Energy Measurement For AMR System

DLMS / COSEM Three Phase Smart Meter Energy Measurement For AMR System
DLMS / COSEM Three Phase Smart Meter Energy Measurement For AMR System

Large Image :  DLMS / COSEM Three Phase Smart Meter Energy Measurement For AMR System

Product Details:
Place of Origin: Made In China
Brand Name: Radarking
Certification: IEC62053-21; IEC62052-11; IEC62056-21
Model Number: DTZY150
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiate
Packaging Details: Standard Package
Delivery Time: 35days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 5000000 pcs per year
Detailed Product Description
Voltage: 3* 220V Current: 3*10(100)A
Frequency: 60Hz Accuracy Class: Active: 1.0 Reactive: 2.0
Pulse Constant: 3*400imp/kwh Communication Mode: PLC, Wifi, GPRS, RS485
Name: Lora Smart Meter Display Digit: 5+1 Or Customized
High Light:

Smart Water Meter

,

Lora Gas Meter

DLMS/COSEM Lora Smart Meter Three Phase Smart Meter for AMR System with RF/GPRS



Main Parameter:





Item   Specification
Reference Current 1.5(6)A 5(40)A 5(60)A 15(60)A 20(100)A
Reference Voltage 3×220V/380V

Dimension (mm)

290×170×85

Working Voltage Range 0.8Un~1.15Un
Maximum Working Voltage 0.7Un~1.2Un
Working Temperature -25℃~+60℃
Maximum Working Temperature -40℃~+70℃
Accuracy Active 1.0 Reactive 2.0







Main Features:



Energy Measurement



Total and time-sharing forward active & reactiveenergy measurement

Total and time-sharing reverse active & reactive energymeasurement

Total forward & reverse apparent energy measurement

Save last one to sixteen months energy data



Max. Demand Measurement

Measure total and time-sharing forward active &reactive maximum demand and time of occurred

Measure total and time-sharing reverse active &reactive maximum demand and time of occurred

Measure total forward & reverse apparent maximumdemand and time of occurred



Real Time Measurement

Real-time measurement of the phase voltage, current,total active power,

reactive power, apparent power, total power factor, powergrid frequency



TOU

4tariffs, 100holidays, 14season‐tables, 8time zone‐tables, each table onmaximum 14 time zones



Event Log

The last 10 records of following events:Power-down,Programing, Cover opening, Terminal cover opening, Reverse power,

PhaseFail.the records include data and time



Loadprofile

At least 4 loadprofile channels,Recordat least 490days data when time interval is 30 minutes



Optical port interface

Support IEC62056-21protocol, 1200bps for communication



RS-485 serial interface

SupportIEC62056(DLMS/COSEM) protocol, 2400bps for communication



LCD display

Number of digits value field Up to 8

Digit size 6x14.5mm



Inputs and outputs

Optical test outputs active energy and reactive energy



Communication modules(optional)

GPRS module:EGSM900/DCS1800 dual-band,support GSM/GPRSphase2/2+ protocol

PLC module: according to Technology Standards of SSC163X ,centerfrequency 270K, FSK modulate technolgy





Notes:



No device inside can be adjust by user.

When installing and using, there should be tight enough for each connection line, to avoid from any bad connection which would cause heating to damage the meter. Make sure of the right connection of input and output. Please install the meter on local where is dry and ventilated. Don’t put in the place under direct highlight, especial for infrared window. When using infrared communication, it should take more attention to avoid from any disturb from highlight to infrared interface, and please adjust the distance and angel of infrared, to make sure of reliable communication.
