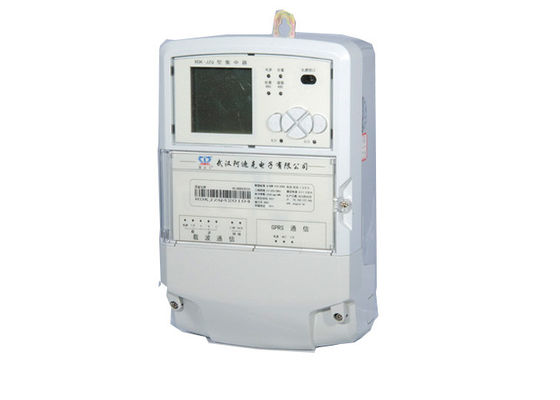

LCD Display Remote Data Collection GPRS Communication Meter Reading Easy Install

LCD Display Remote Data Collection GPRS Communication Meter Reading Easy Install
LCD Display Remote Data Collection GPRS Communication Meter Reading Easy Install

Large Image :  LCD Display Remote Data Collection GPRS Communication Meter Reading Easy Install

Product Details:
Place of Origin: China
Brand Name: RADARKING
Certification: IEC
Model Number: DJGZ32-RDK15
Payment & Shipping Terms:
Minimum Order Quantity: 20 pcs
Price: Negotiable
Packaging Details: Standard Packing in Carton
Delivery Time: 20-30 Working Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 700000 pcs/year
Detailed Product Description
Up Link: GPRS Or RS232 Down Link: PLC Or RS485
Power Supply: AC 3*220V/380V Feature: Data Communication Unit
Display: LCD
High Light:

Power Consumption Monitoring System

,

Smart Energy Monitoring System

Data Concentrator Energy Consumption Monitoring System GPRS Communication Meter Reading



Main Features



1) GPRS uplink with head-end server (HES)

2) Alternative com port :IR optical and RS485

3) On demand and scheduled meter readout

4) Remote load control overriding the consumers

5) Non-volatile memeory for data retention

6) IEC 62056-21 and DLMS/COSEM compliant

7) Automatic fault alarm to HES



Utility benefits



1) High capacity for a hub of up to 500 pcs sub-meters

2) Surge protection and low voltage operatable

3) Quick and easy to install

4) Low operational and maintenance cost

5) Remote tariff setting, time synchronization with meters

6) Long life time design with easy upgrade features



DJGZ32-RDK15 intelligent data concentrator is one important part of AMI system. It connects with master station as a gateway for communication between the meters and the HES. It can perform task setting, data collection, data transmission and data storage, meter management, and task execution .



The upper communication between data concentrator and master station employs GPRS or RS232 technology; the Down link communication between data concentrator and the meters employs RS485/PLC communication.



Specifications:



Electrical parameters:
Voltage
Nominal voltage Un 220V/380V
Extended operating voltage range 80%~115%Un
Limited voltage 60%~130%Un
Frequency
Nominal frequency fn 50Hz
tolerance -6%~2%
Current
Basic current(Ib) 1.5(6)A
Maximum current(Imax) 10A
Starting current(Ist) 3mA
Active energy constant 6400imp/kWh
Measurement Accuracy
Active energy 1%
Reactive energy 2%
Power Consumption
Power consumption in Voltage circuit <10W <8VA
Power consumption in current circuit <1VA
Temperature range
Working temperature -35℃ to+70℃
Limited working temperature -40℃ to+75℃

Insulation strength
AC Insulation strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50μs mains connections 8kV

Electro Magnetic Compatibility
Electrostatic discharges
Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF fields
27MHz to 500MHz typical 10V/m
100kHz to 1GHz typical 30V/m
Fast transient burst test 4kV

Mechanical requirements
Meter shell Protection Rate IP51
Protection
