Flat Plug Electrical Distribution Unit For Power Supply

Flat Plug Electrical Distribution Unit For Power Supply
Flat Plug Electrical Distribution Unit For Power Supply Flat Plug Electrical Distribution Unit For Power Supply

Large Image :  Flat Plug Electrical Distribution Unit For Power Supply

Product Details:

Place of Origin: China
Brand Name: RADARKING
Certification: IEC; ISO
Model Number: RDK-IP08M16

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export Standard Package
Delivery Time: 7-35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500000 per year
Detailed Product Description
Multiple Protection: Lightning Strike, Surge Protection Maximum Impact Current: 20kA Or Higher
Limit Voltage: ≤500V Or Lower Product Model: RDK-IP08M16
High Light:

IEC Flat Plug Electrical Distribution Unit

,

AC220V Electrical Distribution Unit

Electrical Distribution Unit , Flat Plug Power Strip for Power Supply



Introduction:

Power Distribution Unit(PDU) is the power distribution socket for cabinets, it is a product designed to provide power distribution for cabinet-mounted electrical equipment. It has various series specifications with different functions, different installation methods and different socket combinations, and can provide suitable rack-mounted power distribution solutions for different power environments. The application of PDU can make the power distribution in the cabinet more clean, reliable, safe, professional and beautiful, and make the maintenance of the power supply in the cabinet more convenient and reliable.



Specification:

Item Specification
Product Name PDU
Product Model RDK-IP08M16
Input Rated input voltage AC220V 50/60 Hz
Max load current 16A
Power supply type Single phase input, National standard C20 socket
Input parameter collection Current, voltage, active energy, power (active power, reactive power, apparent power, power factor)
Output Output socket Eight circuit; National standard 10A socket
Rated output voltage AC220V 50/60 Hz
Rated output current 10A
Output parameter collection Current, power, power factor
Display LCD Backlit text LCD display
Port parameter RJ45(NET) 10/100M, Ethernet access interface
Cascade port 2 RS485 ports for equipment cascade (photoelectric isolation)
Sensor port 2 temperature and humidity sensor interfaces
Other parameter Button

2 LCD display up/down buttons

1 LCD display down button

One is used as a restart and reset button, single press the device to restart;Long press is the reset function, the device parameters are restored to factory settings.

Working environment Temperature -15°C---50°C
Relative humidity 10—90%
Dimension Black 19 inch 1U chassis 485mm X 250mm X 44mm

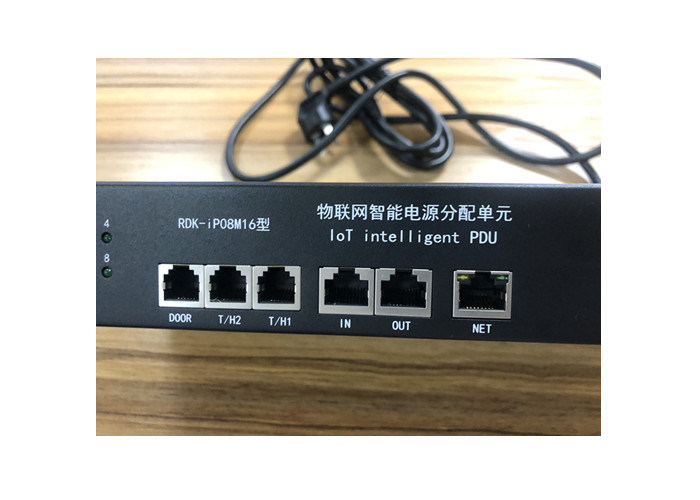

The front of the device

Flat Plug Electrical Distribution Unit For Power Supply 0



The back of the device

Flat Plug Electrical Distribution Unit For Power Supply 1



Device panel description:

 Device system initialization

After the device is powered on, the LCD display is initialized and enters the normal working state after completion.

  • Use the DOWN page button (page down) or UP page button (page up) to view the device system information, including: device address, device total current and total voltage.
  • Overload monitoring

Detect the load current of each output unit of the PDU. If the load current of a certain output unit exceeds the threshold setting, the device will alarm.

If the total load current exceeds the threshold setting, it will automatically jump to the current interface and the total current value will flash.

  • Temperature/humidity alarm.

If the temperature/humidity exceeds the limit value, it will automatically jump to the current interface, and the temperature/humidity value will flash.

  • Equipment cascade.

Set up one HOST and the others as slaves. Up to 255 devices can be cascaded, including 256 devices in total.

Connect one end of the accessory cascading cable to the OUT interface of the HOST, and one end to the IN interface of the slave, and then use a cascading cable to connect the OUT interface of the current slave to the IN interface of the next slave, and connect each slave in turn .



Applications:

Industrial automation control power management

1. Automatic control of factory power

2. Automatic control of traffic power

3. Automatic control of lighting advertising power

4. Automatic control of power supply in the burning room

5. Automatic control of air conditioner power supply



Data center power management

1. Enterprise Computer Center

2. IDC network data center

3. Financial Computer Center

4. School Computer Center

5. Telecom Computer Center

6. Government Computer Center

7. Military Unit Computer Center



FAQ:

Q1: Do you accept OEM production?
A: Yes we are expereienced in OEM production.



Q2: Are you able to supply technical drawings and data sheets of the products?
A: Yes we can supply upon customer's request, please contact our sales.



Q3: How long will you give me the reply?
A: we will contact you in 12 hours as soon as we can.



Q4: Could I get samples?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.



Q5: How are orders packed and shipped ?
A: For custom order, we can design full-color custom packaging to match your brand, if requires. Most shipments include boxes packed inside an outer carton and placed on a wooden pallet.



Q6: What are your quality control procedures?
A: We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
