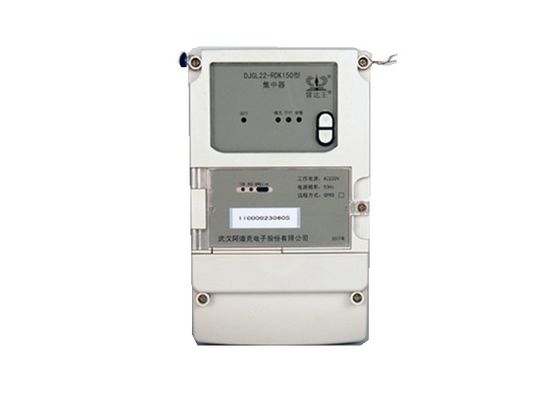

Smart Concentrator Advance Metering Infrastructure For Data Reading Through Carrier / RS485

Smart Concentrator Advance Metering Infrastructure For Data Reading Through Carrier / RS485
Smart Concentrator Advance Metering Infrastructure For Data Reading Through Carrier / RS485 Smart Concentrator Advance Metering Infrastructure For Data Reading Through Carrier / RS485

Large Image :  Smart Concentrator Advance Metering Infrastructure For Data Reading Through Carrier / RS485

Product Details:
Place of Origin: Made in China
Brand Name: Radarking
Certification: ISO9001, ISO4001
Model Number: DJGZ23-RDK150
Payment & Shipping Terms:
Minimum Order Quantity: 1 nos
Price: Negotiate
Packaging Details: Standard Package
Delivery Time: 35 days
Payment Terms: Western Union, L/C, T/T
Detailed Product Description
Voltage: 3*240V/230V/220V Frequency: 50Hz/60HZ
Communication Protocol: DLMS/COSEM Communication Protocol Downward Communication: Micropower Wireless Mode,470.79MHz、1200BPS
Operating Temperature: -25℃~+65℃ Loading Capacity: Can Manage 255 Units Of Collector
Relative Humidity: 5%~85%(non-condensate) Upward Communication: GPRS/wireless/PLC/RF Communication Module
High Light:

automated metering infrastructure

,

smart meter infrastructure

Advance Metering Infrastructure Smart Concentrator For Data Reading Through Carrier / RS485​



Description:

Concentrator is the centre part of centralized meter reading system, which take responsibility in data reading through carrier/RS485, and then communicate with primary station by using GPRS/CDMA/Ethernet.



Features:

1. Data Collecting and Handing: It can monitor and collect real time electricity quantity, month end electricity quantity, day freezing electricity quantity, curve data of interval 1 hour from importatnt user, working status of electricity meter and etc automatically.

2. Storage Function: It can manages at least 1000 sets of single phase electricity meters, 200 sets of three phase multi function carrier electricity meters for each concentrator. 31 days 0:00 am freezing data, 12 months end 0:00am freezing data and 10 important uers 10 days 24 on time data.

3. Timing Function: It has time unit which can be timing by master station, the error for time unit is less than 0.5s per day, and it can handle broadcast time adjust for meters in the system.

4. Setting Function: It can set number of concentrators, communication parameters refers to master station, meter reading, master schedule ratio, line loss threshould value, router and meter number.

5. Remote Control Function: Support for remote control through master station.

6. Complement copy, warming, on-site reading, important user, line loss calculation per day, event log, safe working and remote upgrade.



Parameters:

 Specification  Concentrator
 Type

 RDK-JZQ

 Up Channel: GPRS/CDMA/Network/Telephone Line

 Classify

 according to up/down channel

 Down Channel: Carrier

 Down Channel: RS485

 Power Supply  Three Phase Four Wire
 Voltage  (3x220/380V) ± 20%
 Rated Power  50Hz
 Consumption

 Active Power ≤ 10 W/Apparent

 Power ≤ 30VA (Static Consumption)

 Enviroment Condition

 Working Temperature: -25℃ ~ 55℃

 Relative Humidity: 5% ~ 95%

 Weight  2.8 kg
