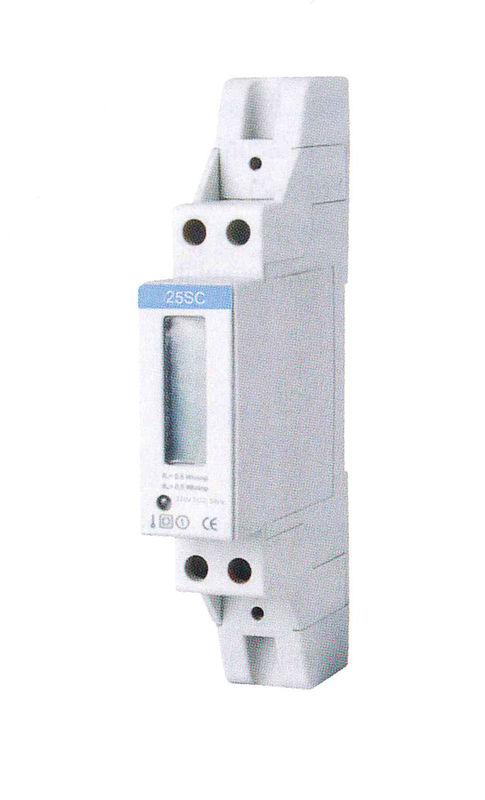

Digital KWH Meter Single Phase With LCD Display , Smallest Static Energy Meter

China Digital KWH Meter Single Phase With LCD Display , Smallest Static Energy Meter supplier

Large Image :  Digital KWH Meter Single Phase With LCD Display , Smallest Static Energy Meter

Product Details:

Place of Origin: China
Brand Name: RADARKING
Certification: IEC
Model Number: RDK 25SC

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Price: Negotiable
Packaging Details: Standard Packing in Carton
Delivery Time: 20-40 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000000 pcs/year
Contact Now
Detailed Product Description
Voltage: 220V Current: 5(40)A
Accuracy: CL 2.0 Display: LCD
Size: 116*58.5*18mm Measurement: Active Energy

Digital Single Phase Din Rail KWH Meter LCD Display Smallest Measuring Meter



Functions and Features:

* 35mm standard DIN rail installation, complying with standard DIN EN50022;

* Single pole width (Modulus 17.5mm), complying with standard DIN43880;

* Standard configuration 7+1 digits display (9999999.1kWh) by white backlight source LCD. May select 7+1 digits display (9999999.1kWh) without backlight source normal LCD;

* Standard configuration impulse output with no power (polarity), may select distant impulse output with no power (no polarity). And contact with all kind of AMR system conveniently, complying with standard IEC 62053-31 and DIN 43864;

* Bicolor LED instructions power state (green) and signal of power impulse (red);

* Automatic detecting the direction of the trend of load current and instructions on LCD: when display HELP 1 on display, that is meaning the load current reverse;

* Single direction measure single phase two wire active power consumption. It is nothing with direction of the trend of load current. Complying with standard IEC 62053-21.

* Directly connect and use, there are two type you may select: default connection type S, can also select type U as connection.

* Extended terminal cover, in order to protect to use electricity safely.



Technical Parameters:

Model Accuracy Rated Voltage (V) Rated Current (A) Starting Current (A) Insulation Performance
RDK25SC

CL 1.0

CL 2.0

220V

110V

5(20)A, 5(25)A

5(30)A, 5(32)A

0.4%Ib

0.5%Ib

AC voltage 2kV for 1 minute, impulse voltage 6kV.



Application:

Model RDK25SC single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, using advanced technique of digital and SMT techniques, etc.



It has completely its independent intellectual property rights and minimum size, and also a new single phase two wire active energy meter. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21.



It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, This meter has white backlight source eight digits LCD monitors shows the active energy consumption.



It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, and etc.



Outer and mount dimension(mm):

Digital KWH Meter Single Phase With LCD Display , Smallest Static Energy Meter



Wiring diagram :

Digital KWH Meter Single Phase With LCD Display , Smallest Static Energy Meter







FAQ:



Q1 Are you a manufacturer?

A1  Yes, we're professional manufacture in meters for more than 15 years.



Q2 Can you handle customized products?

A2  Yes, we have own R&D group to handle customized products as you inquired.



Q3  After Sales Service?

A3  If u have any questions about the receuved product, we will try our best to solve it.
