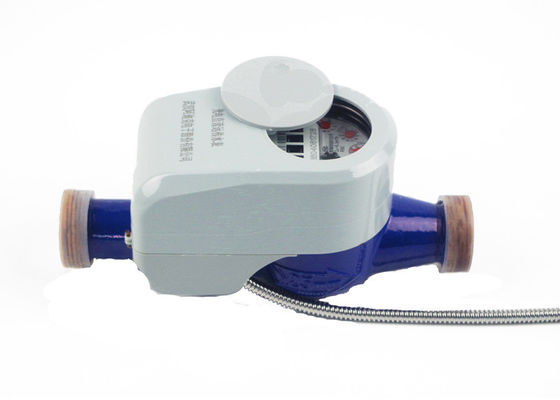

Horizontal Smart Water Meter M - Bus Communication , Smart Power Monitoring System

Horizontal Smart Water Meter M - Bus Communication , Smart Power Monitoring System
Horizontal Smart Water Meter M - Bus Communication , Smart Power Monitoring System

Large Image :  Horizontal Smart Water Meter M - Bus Communication , Smart Power Monitoring System

Product Details:
Place of Origin: China
Brand Name: Radarking
Certification: CE, CCC, ISO9001, ISO14001, ISO4064
Model Number: LXZ
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiate
Packaging Details: Standard Packing in Carton
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000000 pcs/year
Detailed Product Description
Product Name: Cold Water Meter Working Pressure: ≤1Mpa
Material: Brass Feature: Remote Meter Reading
Valve: With Valve Install: Horizontal
High Light:

Electricity Consumption Monitoring System

,

Smart Energy Monitoring System

Water Meter in Energy Consumption Monitoring System M-Bus Communication Horizontal



M-Bus is especially applied as the Bus structure of public utilities' meters, called as Meter-Bus, short for M-Bus.



M-Bus meter bus line pertains to LAN (Local Area Network), is a special network for the same residential building, campus or a certain region within several kilometers that being applied in connecting long distance monitor computer and workstation and the measuring instruments etc.




Product Features:
1) Confirms to EN13757-2 2004 international standard, with a favorable compatibility and openness, meanwhile supports various meter types, such as water/electricity/gas/heat meters etc.



2) Adopt two wire connection mode, enables a long communication distance and bus power supply


3) Non-polar of the transmission line, willfully branch of the network topology, easy network, shooting the problem of meter breakdown and failure of meter reading caused by Bus line misconnection


4) Double power supply modes: Lithium battery and Bus line power supply


5) Real-time reading of the current meter data and monthly data within a year


6) Low power dissipation, quiescent operation current below 5 μ A, guarantee battery of a long service life

Product Advantages:
1) M-Bus is the common international standard of consumer instruments, whose topology structure is the Bus line that applies the most common two wires connection and offers/fulfills the function of metering power supply & data communication.



2) Non-polar of the Bus line in connecting, willfully wiring construction of the topology network, thus hugely cuts the construction cost & difficulty.


3) Bus Line enjoys a perfect compatibility and openness.


4) Strong compatibility/generality of its topology structure, allow liner/loop/star or various mixed types





Specification:



DN Metrological
Accuracy
Permanent
Flow /Q3
Q3/Q1 Q2/Q1 Min.
Reading
Max.
Reading
mm class m3/h m3
15 B 2.5 63/80/100 1.6 0.0001 99999
20 B 4.0 63/80/100 1.6 0.0001 99999
25 B 6.3 63/80/100 1.6 0.0001 99999
