High Accuracy Three Phase Quality Monitoring Equipment For Energy Measuring

China High Accuracy Three Phase Quality Monitoring Equipment For Energy Measuring supplier

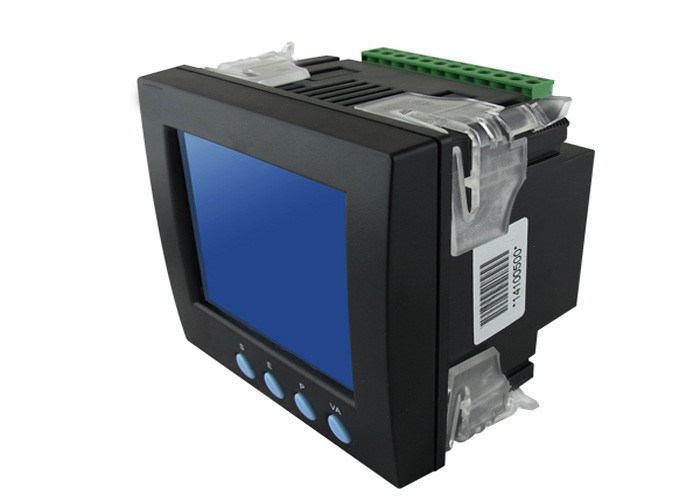

Large Image :  High Accuracy Three Phase Quality Monitoring Equipment For Energy Measuring

Product Details:

Place of Origin: Made In China
Brand Name: Radarking
Certification: IEC62053-21; IEC62052-11; IEC62053-23;
Model Number: DSS150

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiate
Packaging Details: Standard Package
Delivery Time: 35days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 5000000 pcs per year
Contact Now
Detailed Product Description
Voltage: 220V Current: AC1A, AC5A
Frequency: 45~65Hz Or DC Pulse Constant: 400imp/lkwh, 800imp/kwh, 1000 Imp/kwh
Display: LCD Display: 6+2 Digits Standard: IEC62053-21; IEC62052-11; IEC62053-23
Power: <1VA/ Phase Baud Rate: 1200~9600bps,the Default Is 2400bps

Digital Meter Power Quality Monitoring Equipment Energy Measuring High Accuracy Three Phase



Product Description



Ethernet power meter is a three-phase multifunction power and energy meters manufactured by RADARKING. These meters provide excellent value for monitoring power and energy management systems. It may be used as data gathering devices for intelligent power distribution or plant automation systems. All monitored data is available via a standard digital RS485 communication port running the Modbus RTU protocol. It has the PC software and the data logger function, which can set by end users from 1min to 60min intervals to record. You can read the data in PC. Also, you can share the data in the Internet LAN. By the way, it can measure the harmonics.With a wide range of models to choose from, the 2200A power meter offers unparalleled value and functionality.





Features

  • True-RMS measuring Parameters
  • ANSI and IEC 0.5 Accuracy class
  • Power Quality Analysis
  • 4 Quadrant Energy
  • 4MB onboard memory
  • Data logging
  • High-speed RS485, Ethernet Port (option)
  • Measure Individual Harmonics from 2nd to 49th (option)
  • Module Design
  • TOU, 4 Tariffs
  • Class leading Warranty
  • With management software

Applications

  • Metering of distribution feeders, transformers, generators, capacitor banks and motors.
  • Medium and low voltage systems.
  • Commercial, industrial, utility.
  • Power quality analysis

Specifications



Parameter Accuracy Resolution Range
Voltage 0.2% 0.01V 0.5-500kV
Current 0.2% 0.01mA 5mA-50000A
Active Power 0.5% 0.2W -9999MW~+9999MW
Reactive Power 2% 0.2var -9999Mvar~+9999Mvar
Apparent Power 0.5% 0.2VA 0-9999MVA
Active Power Demand 0.5% 0.2W -9999MW~+9999MW
Reactive Power Demand 2% 0.2var -9999Mvar~+9999Mvar
Apparent Power Demand 0.5% 0.2VA 0-9999MVA
Power Factor 0.005 0.0001 -1.0000~0~1.0000
Frequency 0.01Hz 0.01Hz 45.000-65.000Hz
Energy Primary 0.5% 0.1kWh 0-99999999.9kWh
Secondary 0.001kWh 0-999999.999kWh
Reactive Energy Primary 2% 0.1kvarh 0-99999999.9kvarh
Secondary 0.001kvarh 0-999999.999kvarh
Apparent Energy Primary 0.5% 0.1VAh 0-99999999.9kVAh
Secondary 0.001VAh 0-999999.999kVAh
Phase Angle 0.1° 0.01° 0-359.99°
Unbalance Factor 2% 0.01% 0-300.00%
PT   1 1-10000
CT   1 1-10000
Addr   1 1-254



Display LCD Display, 128´64 Lattice, English and Chinese interface
Communication RS485 port,Ethernet port
Connection Mode 3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W.
Programmable Measuring System 3P4W/3P3W etc.
Transformation Ratio PT,CT.
Communication Address: 1-247; Baud: 1200-19200; Parity Bit: N/E/O
RTC Year; Month; Day; Hour; Minute; Second
Energy Reset
Power Supply (AC/DC) AC85~265V / DC85~330V, DC18~90V (optional)
Power Consumption <4VA
Working condition Temperature
-25 to 55 °C
Humidity 20% ~ 95%RH, Without condensation
