| Name: | Wireless Din Rail STS Prepaid Meter | Mounting: | 35mm DIN |
|---|---|---|---|
| Latch Relay: | Build-in | Accurac Y: | CL 1.0 |
| Dimension: | 155*120*52mm | Communication: | LoRa, RF, PLC |
| Highlight: | Prepayment Smart Meter,Prepaid Power Meter |
||

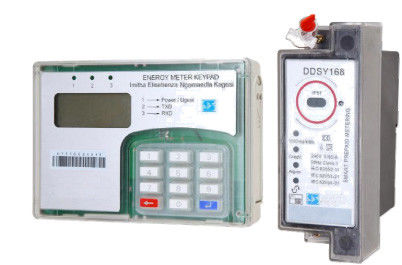

Single Phase Split Din Rail Prepayment Power Meter With CIU Pole Mounting
DDSY150 is used for a wide rang of applications, due to an improved dynamic range allowing a
basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features. It is a compact and keypad based design in a BS8565 standard housing and maintains the
rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.
Main Features
AMR/AMI Smart Metering Function (on request)
Specifications:
| Nominal voltage Un | 220/230/240 V |
| Limited voltage | 70%~120%Un |
| Nominal frequency fn | 50-60Hz+5% |
| Basic current(Ib) | 5-10A |
| Maximum current(Imax) | 60-100A |
| Starting current(Ist) | 20mA |
| Active energy constant | 1000imp/kWh |
| Accuracy as Active energy to IEC62053‐21 | Class1.0 |
| Power consumption in Voltage circuit | <2W <8VA |
| Power consumption in current circuit | <1VA |
| Operating temperature | 25℃ to+70℃ |
| Storage temperature | 40℃ to+85℃ |
| Insulation level | 4kV rms for 1min |
| Impulse voltage withstand | 8kV, 1.2/50 μs |
| Air discharge | 16kV |
| Immunity to HF fields | |
| 80MHz to 2GHz with load | 10V/m |
| 100kHz to 1GHz without load | 30V/m |
| Fast transient burst test | 4kV |
| Meter shell Protection Rate | IP54(IEC60529) |
| Insulation System Classification |
Protective Class II |
Safety precautions:
- Use only isolated tools.
- Do not connect the meter to a 3 phase - 415V AC - network.
- Place the meter only in dry surroundings.
- Make sure the used wires are suitable for the max current the meter can measure.
- Make sure the AC wires are installed correctly before activating the current/voltage.
- Do not touch the meter connecting clamps directly with your bare hands, with metal, blank wire or other material as you will have the chance of an electricity shock and a possible chance for health damage.
- Make sure the protection cover is placed after installation and has been sealed.
- Installation, maintenance and repair should only be done by a certified electrician.
- Never break the seals or open the front cover as this might influence the functionality of the meter.
- Do not through, drop, kick or other physical violence to the meter as there are high precision components inside that will break or make the meter measure inaccurate.
- Do not mount the meter in area's with harm gas, dust, mildew or insects or on unstable surfaces.
