Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V/230V X 3, 380V | Current: | 1.5(6)A, 5(30)A, 10(60)A, 20(80)A, Etc. |
|---|---|---|---|
| Frequency: | 50/60Hz | Accuracy Class: | 2.0, 1.0, 0.5S; 2.0(Reactive Power) |
| Pulse Constant: | 6400, 2400, 1600, 800 Imp/kWh, Etc | Power Consumption: | ≤ 0.8W/phase |
| Clock Accuracy: | ≤ 0.5s/Day (Reference Temperature 23℃) | Data Storage Period: | ≥ 10 Years |
| High Light: | three phase energy meter,three phase power meter |
||

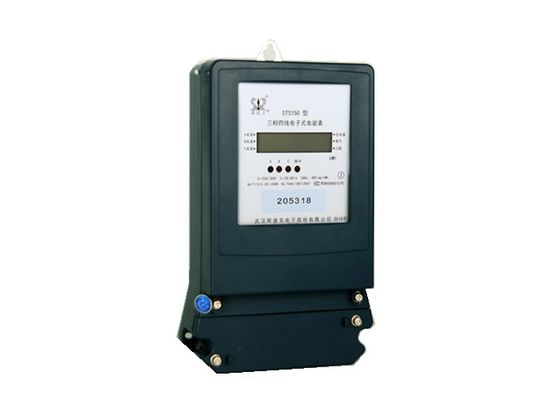

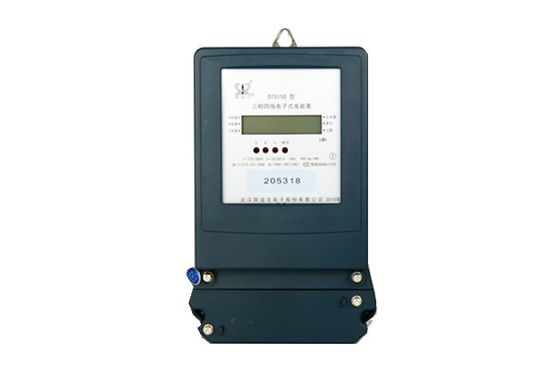

380V Three Phase Four Wires Electric Meter With Carrier Communication Module
Description:
Three Phase Electronic Static Meter is a digital intelligent metering reliable design. Such as perfect power source and electromagnetism compatible design, which are suitable to the strong electromagnetism disturbance and big occasion of power source fluctuation.
Specification:
| Standard | IEC 62053-21:2003, DL/T645-1997/2007 | ||
| Environmental temperature | -10℃ ~ +50℃ | ||
| Limiting ambient temperature | -25℃ ~ +65℃ | ||
| Relative humidity | ≤ 85% | ||
| Power consumption | ≤ 0.8W/phase | ||
| Reference Voltage | Basic current (maximum rated current)(A) | Accuracy | Wiring method |
| 220V*3, 380V | 1.5(6)A, 5(10)A, 10(30)A, 20(60)A, etc. | 2.0, 1.0, 0.5S; 2.0(Reactive Power) | Direct type |
Features:
1. Product's Type: Register (5+1), LCD (5+1 or 6+1).
2. Cover to Meter: Fully sealed dustproof and waterproof design, material of cover has excellent flame retardant and anti-corrosion, anti-aging properties.
3. On-Off Manner: Build in or external switch can be optional.
4. Electric Power Measurement: Positive active power, reverse active power and power in A, B, C phase which can be measured.
5. Communication Mode: Infrared, RS485 interface or carrier communication module(Optional).
6. Date Storage Period ≥ 10 years, period for clock working since power off is ≥ 5 years
