RS485 Anti Theft 3 Phase Meter , Four Wire Smart Card Prepaid Electricity Meter

Really profession in the meter industry, gave us so many useful advice in the AMI solution, very good!

—— George

The meters are good, simple but useful, and also good in after service, each of my question or requirement can be solved well! Thank you for cooperate

—— Amitansu

I'm Online Chat Now

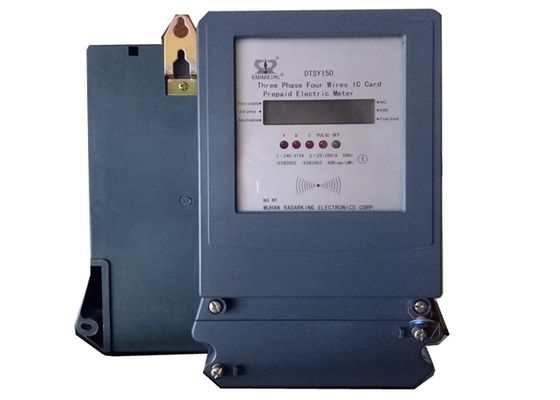

RS485 Anti Theft 3 Phase Meter , Four Wire Smart Card Prepaid Electricity Meter

RS485 Anti Theft 3 Phase Meter , Four Wire Smart Card Prepaid Electricity Meter
RS485 Anti Theft 3 Phase Meter , Four Wire Smart Card Prepaid Electricity Meter

Large Image :  RS485 Anti Theft 3 Phase Meter , Four Wire Smart Card Prepaid Electricity Meter

Product Details:
Place of Origin: China
Brand Name: Radarking
Certification: IEC 62053-21:2003
Model Number: DTSY150
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 5-35 Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 5000000 pcs per year
Detailed Product Description
Voltage: 220V/230V/240V X 3, 380V Current: 1.5(6)A, 5(30)A, 10(60)A, 20(80)A, Etc.
Frequency: 50/60Hz Accuracy Class: 2.0, 1.0, 0.5S; 2.0(Reactive Power)
Pulse Constant: 6400, 2400, 1600, 800 Imp/kWh, Etc Power Consumption: ≤ 0.8W/phase
Clock Accuracy: ≤ 0.5s/Day (Reference Temperature 23℃) Data Storage Period: ≥ 10 Years
High Light:

three phase power meter


three phase smart meter


RS485 Anti Theft Meter

RS485 Anti-Theft Three Phase Four Wire Smart Card Prepaid Electronic Meter



Smart Card Prepayment Energy Meter has the complete digitized electronic energy measurement, the intellectualized charge control and the user information management the multi-purpose functions and so on. It is an ideal product on the current situation of reforming electric power consuming system, commercializing electric power, solving the problems of the collection of charges, as well as adjusting load state of electrical network.

Three-phase static electricity meter use Special imported large scale integrated circuit, 16 bit A/D conversion, digital multiplier, application of digital sampling technology and SMT technology, According to the actual power consumption of industrial users, design and manufacture of new model meter. This meter adopts an independent three units metering module can accurately measure the three-phase forward and reverse active power. The measurement error has excellent long-term stability. The performance meets the technical requirements of three-phase energy meter in GB/T17215.321-2008 standard



 Voltage  220V/230V/240V x 3, 380V
 Current  1.5(6)A, 5(30)A, 5(60)A, 20(80)A, 30(100)A, etc.
 Frequency  60Hz/50Hz
 Class Accurancy  1.0
 Reference Standard  IEC 62053
 Pulse Constant(imp/kWh)  6400, 3200, 2400, 1600, 1200, 800, 400, 200
 Display  LCD Display.
 Load Control  Built -in magnetic latching relay
 Reverse Alarm  Flip arrow on the LCD
 Starting Current  0.4%Ib
 Temperature Range  Customized
 Humidity  <90%
 Audible Indication  Buzzer,for the indication of the action result or alarm
 Communication  Infrared, RS485 interface or carrier communication module(Optional)

1. Bidrectional Measurement of active power, LCD display total electricity;
2. With RS-485 and infrared communication, remote read total electricity;
3. Settable or backcopy: Total power, meter constant, meter address, meter password and other parameters
4. With programming switches, online programble;
5. Watchdoy system in chip, so that the data is more secure and reliable, long-term data preservation without power( more than 10years);
6. Isolated power supply, respectively supply power for CPU, Measurement and RS485
7. With loss phase deictic function.
8. Communication protocol: According to the Multi-function watt-hour meter communication protocol DL/T 645-1997 People's Republic of China electric power industry standard implementation.
