Product Details:
Payment & Shipping Terms:
|
| Multiple Protection: | Lightning Strike, Surge Protection | Maximum Impact Current: | 20kA Or Higher |
|---|---|---|---|
| Limit Voltage: | ≤500V Or Lower | Product Model: | RDK-IP08M16 |
| High Light: | IEC Rack Mount Power Distribution Unit,RDK-IP08M16 Power Distribution Unit,20kA Power Distribution Unit |
||
Under Cabinet Power Strip Hardwired , Rack Mount Power Distribution Unit PDU
Introduction:
Power Distribution Unit(PDU) is the power distribution socket for cabinets, it is a product designed to provide power distribution for cabinet-mounted electrical equipment. It has various series specifications with different functions, different installation methods and different socket combinations, and can provide suitable rack-mounted power distribution solutions for different power environments.
The application of PDU can make the power distribution in the cabinet more clean, reliable, safe, professional and beautiful, and make the maintenance of the power supply in the cabinet more convenient and reliable.
Specification:
| Item | Specification | |
| Product Name | PDU | |
| Product Model | RDK-IP08M16 | |
| Input | Rated input voltage | AC220V 50/60 Hz |
| Max load current | 16A | |
| Power supply type | Single phase input, National standard C20 socket | |
| Input parameter collection | Current, voltage, active energy, power (active power, reactive power, apparent power, power factor) | |
| Output | Output socket | Eight circuit; National standard 10A socket |
| Rated output voltage | AC220V 50/60 Hz | |
| Rated output current | 10A | |
| Output parameter collection | Current, power, power factor | |
| Display | LCD | Backlit text LCD display |
| Port parameter | RJ45(NET) | 10/100M, Ethernet access interface |
| Cascade port | 2 RS485 ports for equipment cascade (photoelectric isolation) | |
| Sensor port | 2 temperature and humidity sensor interfaces | |
| Other parameter | Button |
2 LCD display up/down buttons 1 LCD display down button One is used as a restart and reset button, single press the device to restart;Long press is the reset function, the device parameters are restored to factory settings. |
| Working environment | Temperature | -15°C---50°C |
| Relative humidity | 10—90% | |
| Dimension | Black 19 inch 1U chassis | 485mm X 250mm X 44mm |
Features:
Filter protection: With fine filter protection, output ultra-stable pure power.
Interface protection: Two-pole photoelectric isolation RS485 interface anti-jamming protection;
Alarm display: LCD screen, digital current display and full current monitoring with alarm function;
Multiple protection: Lightning strike, surge protection;
Maximum impact current: 20kA or higher;
Limit voltage: ≤500V or lower.

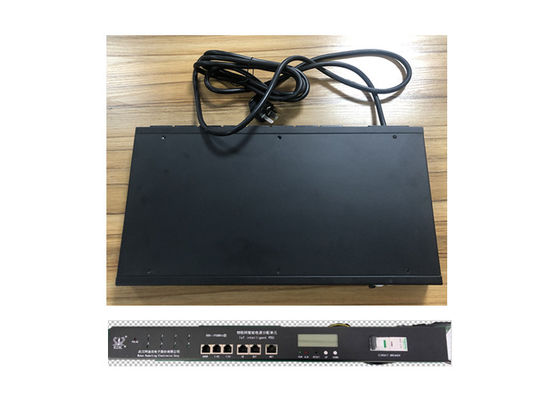

The front of the device

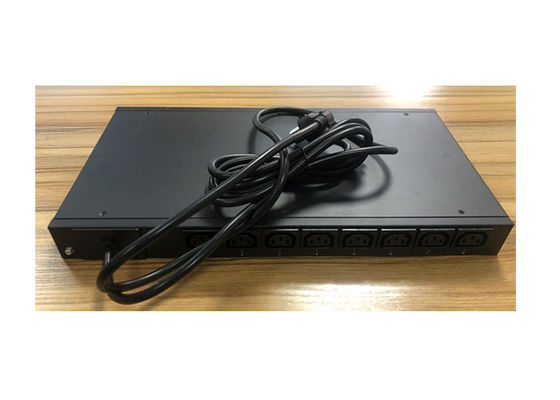

The back of the device
Company Introduction:
Wuhan Radarking Electronics Corp. is a modern share enterprises which focusing on the smart Internet of things(IOT) /smart grid energy consumption sensor/intelligent electric safety integrated solution. It established in 2002(former name: Wuhan Radarking Co.,Ltd.)and went public on January 27, 2015 with the stock abbreviation RADARKING and stock number 831722. It owns the independent R&D center and factory which is the key recommended high-tech enterprises in Wuhan city.
Oversea Market:
Quality product performance and good reputation, our products are not only successful sales in China, but also have been exported to more than 100 countries and regions in the world, including: Mongolia, Malaysia, Bangladesh, Germany, Italy, Russia, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.
FAQ:
1. Q: Are you trading company or manufacturer ?
A: We are factory.We are not only a factory,but also solutions provider and meter designer.
2. Q: Do you have a catalogue? Can you send me the catalogueto have a check of all your products?
A: Yes , We have product product list. Please contact us online or send an Email to sending the catalogue.
3. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample ,but not free
4. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
5. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-35 days if the goods are not in stock, it is according to quantity.
