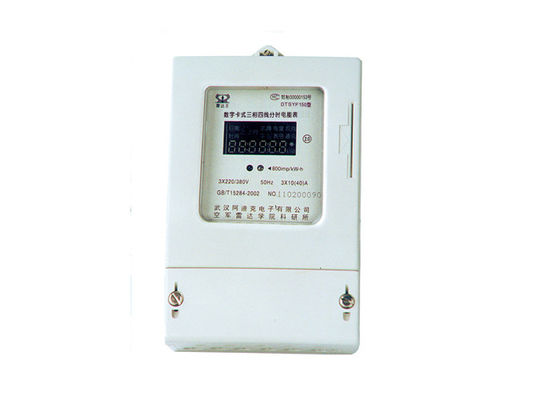

Multi Function Prepaid Three Phase Four Wire Energy Meter With Smart IC Cards

China Multi Function Prepaid Three Phase Four Wire Energy Meter With Smart IC Cards supplier
Multi Function Prepaid Three Phase Four Wire Energy Meter With Smart IC Cards supplier Multi Function Prepaid Three Phase Four Wire Energy Meter With Smart IC Cards supplier

Large Image :  Multi Function Prepaid Three Phase Four Wire Energy Meter With Smart IC Cards

Product Details:

Place of Origin: Made in China
Brand Name: Radarking
Certification: IS09001; IS014001; IEC62052-11; IEC62053-21;
Model Number: DTSY150/IC

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: Export Standard Package
Delivery Time: 30days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000000 pcs per year
Contact Now
Detailed Product Description
Name: Prepaid Energy Meter Accuracy Class:: 1.0(active); 2.0(reactive Energy)
Pulse Constant:: 1600 Imp/kwh Indicator: Pulse Output; Power Off Indication; Overload Display
Data Storage Period: 10 Years Voltage: 3*230V/400V
Current: 3*15(60)A Clock Accuracy: Less Than 0.5S/day

Multi Function Prepaid Three Phase Four Wire Energy Meter With Smart IC Cards



Introduction:

Traditional prepaid electric meter is normally working by the means of Multi-Card One Meter, electricity consumption measurement or No Card to deduct the purchased electricity (unit: kWh ) after being inserted into IC Card. However, the price fluctuation of electricity market which cannot reflect in the purchased electricity will increase the losses of Power Company.



For this purpose, a new designed prepaid electric meter Model No. DTSY150 D/F/A issued by Radarking adopts the electricity fee ( Unit: CNY) way, that is, when the fee is transmitted into through Client IC Card and the meter will deduct the price of electricity ( 0.1kWh as base ) according to the unit price, which is set on the IC Card to be transferred into the meter. When the electricity rate changes, the unit price of electricity in the meter will also be changed through the communication medium IC card that the modified unit price are written into from the vending system.



Technical parameters:

Applicable Standard IEC 62052-11 and IEC 62053-21
Accuracy Class1/2
Voltage 3P4W: 3×220/380V
3P3W: 3×57.7/100V,
3×380V, 3×100V
Current 1.5(6)A,3(6)A,5(20)A,10(40)A,15(60)A, 20(80)A etc.
Frequency 50Hz or 60Hz
Display LED 5 integer plus 1 decimal,
LCD 5 integer plus 1 decimal digital number,



LCD display
Number of digits value field Up to 8, Digit size 6x14.5mm







Multi Function Prepaid Three Phase Four Wire Energy Meter With Smart IC Cards



Main Features:

1. Energy Measurement

Total and time-sharing forward active & reactiveenergy measurement

Total and time-sharing reverse active & reactiveenergy measurement

Save last one to sixteen months energy data

2. Load control function

When the residual energy is0 or the allowable overdraft that both sides agreed, this meter will send out poweroff signal to have load switch cut off power.

The power will be recovered automatically after inputting new purchased energy amount.

3. Programmable low credit warning

The meter can be programmedfor setting user credit warning threshold, When the meter’s residual energy is equal to credit warning threshold, the meter will start the audio & video warning function in a way of warning light flashing.

4. Tamper detection

With event recording function (includingcover-opening event, tamper event and power failure event)

5. Max. Demand Measurement

Measure total and forward active & reactive maximumdemand and time of occurred

Measure total and reverse active & reactive maximumdemand and time of occurred

Measure total forward & reverse apparent maximumdemand and time of occurred

6. Real Time Measurement

Realtime measurement of the phase voltage, current,total active power, reactive power, apparent power, total power factor, powergrid frequency.

7. TOU

4tariffs, 100holidays, 14season‐tables, 8time zone‐tables, each table onmaximum 14 time zones

8. Event Log

The last 10 records of following events:Power-down,Programing, Cover opening, Terminal cover opening, Reverse power, PhaseFail.the records include data and time

9. Optical port interface

Support IEC62056-21 protocol, 1200bps for communication

10. RS-485 serial interface

Support IEC62056(DLMS/COSEM) protocol, 2400bps forcommunication



FAQ:

1. Q: Are you trading company or manufacturer ?
A: We are factory.We are not only a factory,but also solutions provider and meter designer.

2. Q: Do you have a catalogue? Can you send me the catalogueto have a check of all your products?
A: Yes , We have product product list. Please contact us online or send an Email to sending the catalogue.
3. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample ,but not free

4. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-35 days if the goods are not in stock, it is according to quantity.
