| Voltage: | 3x220V/380V | Current: | 1.5(6)A, 5(30)A, 10(60)A, 20(80)A, Etc. |
|---|---|---|---|
| Frequency: | 50Hz, 60Hz | Pulse Constant: | 6400, 3200, 2400, 1600, 800 Imp/kWh |
| Standard: | IEC 62053-21:2003, DL/T645-1997/2007 | ||
| High Light: | smart energy meter,prepaid electricity meter,RF Function Prepaid Meter |
||

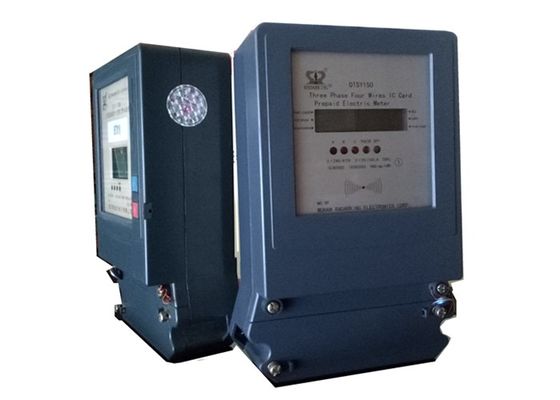

LCD Display Three Phase Four Wire Power Multimeter Prepaid Meter With RF Function
Description:
Smart Card Prepayment Energy Meter used the entire digitized electronic meter special-purpose chip group.As a good digitized electronic metering device, it take integrated circuit card as to pay the bill. It's a new generation of products, it has the smart charge control and the user information management the multi-purpose functions and so on. It is an ideal product on the current situation of reforming electric power consuming system, commercializing electric power, solving the problems of the collection of charges, as well as adjusting load state of electrical network.
Main Parameters:
| Product name | 3 Phase 4 Wire Multi Function Power Electric kWh Mete | |
| Meter Type | DTSD1150 | |
| Voltage(V) | Voltage AC (Un) | 3*240/415V |
| Voltage rang | 3*161/279 to 300/520 | |
| Current (A) | Base (Ib) | 1.5 CT /10 |
| Max (Imax) | 6CT /100 | |
| Starting current (mA) | 0.4% of Ib | |
| Power consumption of current | ≤2W /10VA per phase | |
| General data | Frequency(Hz) | 50(±10%) |
| Accuracy | 1.0 | |
| Standards | IEC62053-21 | |
| Memory back-up | EEPROM | |
| Enclosure material | Upper | Polycarbonate |
| Lower | Polycarbonate/glass fiber | |
| Temperature range(℃) | Operating | -10℃ to +50℃ |
| Storing | -30℃ to +70℃ | |
| Humidity | Operating | 75% |
| Storing | 95% | |
| Protection | Protection against penetration | |
| Of dust and water | IP51 | |
| insulating encased meter | Of Protective class | II |
| Voltage withstand | AC voltage withstand | 2KV for 1 minute |
| Impulse voltage withstand | 6KV-1.2uS waveform | |
| Current withstand | 30Imax for 0.01s | |
| Pulse output rate | 1600imp/kWh | |
| Data stored | More than 20 years when power off | |
Application:
It is a new generation product that is developed by our company adopting the newest international micro-technique and the newest international electronic currency-IC card as purchasing electricity media.
This meter has many functions such as electrical energy calculation ,load control and mangement of user informations, etc.,specially for currently,this meter is the best use for solve charge question.
The product can be installed in the electric meter box,indoor or outdoor,the ambient temperature is -25'C - +60'C.The relative humidity is less than 85%.
Each of the capabilities index of product complies with IEC62053-21 static watt-hour meter international standard
And the meter confirmed by CE and ISO9001-2000 standards.
Working principle
+LCD display or counter display or double show
+pulse output with optical-coupling isolated
+Over-load alarm
+ precaution alarm
+ power down alarm
+ purchase reminding
Specifications and main technical parameter:
Rated voltage:380V
Rated current:1.5(6)A 2.5(10)A 5(20)A 5(30)A 10(40)A 10(60)A
Rated frequency:50HZ 60HZ
Accuracy (class):class 1.0
Starting current:0.4%(class1.0)0.5%(class2.0) rated current
Running with no-load:It use logic design to anti-running
Environment condition:Normal operation temperature is :-10--+45
Extreme operating temperature is:-20--+55
Relative temperature:<or= 85%
Weight: about 0.7kg
Outline dimension:163*10*61mm
