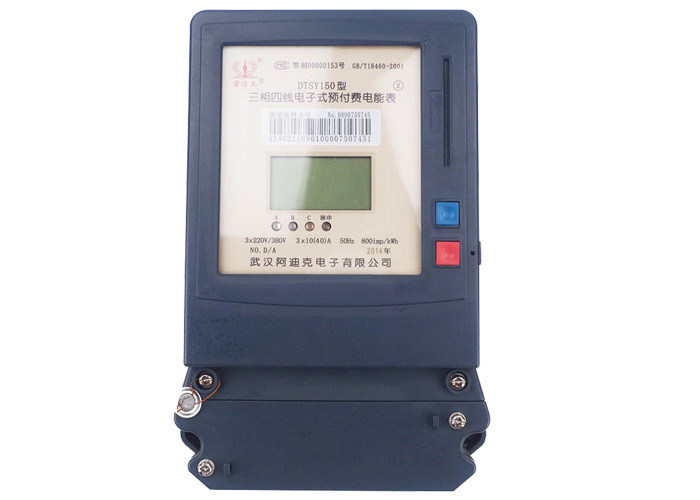

IC Care Prepaid Energy Meter Three Phase 3 * 220V / 380V With Pulse Output

IC Care Prepaid Energy Meter Three Phase 3 * 220V / 380V With Pulse Output
IC Care Prepaid Energy Meter Three Phase 3 * 220V / 380V With Pulse Output

Large Image :  IC Care Prepaid Energy Meter Three Phase 3 * 220V / 380V With Pulse Output

Product Details:
Place of Origin: Made in China
Brand Name: Radarking
Certification: IS09001; IS014001; IEC62052-11; IEC62053-21;
Model Number: DTSY150/IC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiate
Packaging Details: Standard Package
Delivery Time: 30days
Payment Terms: Western Union, T/T, L/C
Detailed Product Description
Name: Smart Energy Meter Accuracy Class:: 1.0(active); 2.0(reactive Energy)
Pulse Constant:: 800 Imp/kwh Indicator: Pulse Output; Power Off Indication
Data Storage Period: More Than 10 Years Voltage: 3*220V/380V
Current: 3*10(40)A Clock Accuracy: Less Than 0.5S/day
High Light:

smart energy meter

,

prepaid electricity meter

Three Phase Prepaid Energy Meter IC Care Prepayment Energy Meter with Pulse Output



Traditional prepaid electric meter is normally working by the means of Multi-Card One Meter, electricity consumption measurement or No Card to deduct the purchased electricity (unit: kWh ) after being inserted into IC Card. However, the price fluctuation of electricity market which cannot reflect in the purchased electricity will increase the losses of Power Company.



For this purpose, a new designed prepaid electric meter Model No. DTSY150 D/F/A issued by Radarking adopts the electricity fee ( Unit: CNY) way, that is, when the fee is transmitted into through Client IC Card and the meter will deduct the price of electricity ( 0.1kWh as base ) according to the unit price, which is set on the IC Card to be transferred into the meter. When the electricity rate changes, the unit price of electricity in the meter will also be changed through the communication medium IC card that the modified unit price are written into from the vending system.





Technical parameters:

Electrical parameters:
Voltage
Nominal voltage Un 3x220V
Extended operating voltage range 80%~115%Un
Limited voltage 70%~120%Un
Frequency
Nominal frequency fn 60Hz
tolerance 5%
Current
Basic current(Ib) 10A
Maximum current(Imax) 100A
Starting current(Ist) 30mA
Active energy constant 400imp/kWh
Measurement Accuracy
Active energy to IEC6205321 Class1.0
Reactive energy to IEC6205323 Class2.0
Power Consumption
Power consumption in Voltage circuit <2W <8VA
Power consumption in current circuit <1VA
Temperature range
Operation meter 25ºC to+70ºC
Storage 40ºC to+85ºC





Main Features:

  • Pay As You Go: IC card that adopts " Financial Card Project" hardware encryption technology is used by the Power Company to collect the electricity fee in advance.
  • High Reliability: the meter is combined with fully-digital metering, kWh display, prepayment control, card reading and smart anti-theft technique .
  • Overload Protection: the meter will cut off the power supply circuit automatically when the load exceeding about 20%~30% of rated Max. Current lasts for 10~15s;
  • High Security And Accuracy: the IC card is used multiple encryption via hardware and software to ensure data safety, accurate and reliable. The special design of IC Card is that it can record the the information about remaining electricity fee, accumulated electricity when the User insert it into the meter and also can reflect power stealing action.
  • Perfect Interface Protection: the meter has the capability to protect circuit against malicious attacks.
  • Scrolling Display: the show time of different metering parameters is 10s for residual electricity fee (Two decimals, CNY), 5s for unit price, 5s for accumulated power consumption (One decimal, kWh) and 5s for the current power consumption (One decimal, kWh)
  • Easy-To-Read: The total and unit price of electricity inside the meter is accumulated in the unit of four decimals and CNY.
  • Has the feature of partition management.
  • Supports for max. hoarding electricity quantity and alarm mode.
  • Magnetic Latching Relay Applied: it can improve the performance of outage movement and lower the power consumption after power failure, and meanwhile, also can get rid of the contactor adhesions when the relay is being worked under the large current for a long time.
  • The meter will keep data or get recovery when being powered on./off automatically.
