DTSK150 3 Phase Prepaid Electricity Meters , BS Mounting Smart Prepaid Meters

China DTSK150 3 Phase Prepaid Electricity Meters , BS Mounting Smart Prepaid Meters supplier

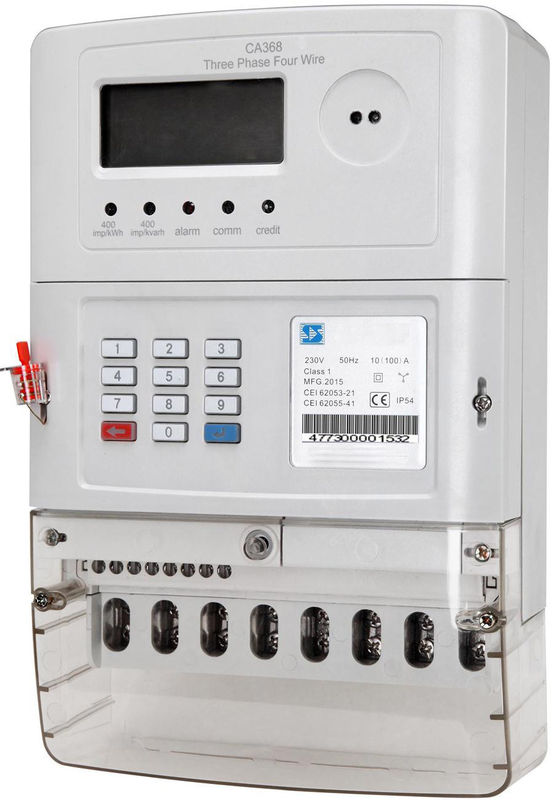

Large Image :  DTSK150 3 Phase Prepaid Electricity Meters , BS Mounting Smart Prepaid Meters

Product Details:

Place of Origin: China
Brand Name: Radarking
Certification: IEC, STS
Model Number: RDK DTSK150

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiate
Packaging Details: Standard Packing in Carton
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000000 pcs/year
Contact Now
Detailed Product Description
Name: Three Phase STS Prepaid Meter Standard: SANS1524-1 , IEC62056-21 , IEC62053-21
Application: Residential Anti-Tamper: Cover Open ,Reverse Connection ,Earthing
Display: LCD Dimension: 265*170*77mm

Three Phase STS Prepaid Meters BS Mounting GPRS Communication Smart Prepayment Meter





The DTSK150 is Radarking's triple phase prepaid meter. It is a four-wire, three phase of 100 Amp per phase, keypad based prepayment meter in a BS standard mounting housing. The meter is designed for large residential houses, small commercial and industrial metering applications.



The product is manufactured by ISO9001 standards. IP54 rated protection, a broad range of voltage ( Un -40% +20%) and 30V/m RF immunity , allow it to work in harsh environments. The CA368 provides both active and reactive energy measurement, and a 2400 bps baud rate infrared optical port for data extraction and investigation.



The DTSK150 can also work with a user interface unit as UU. UIU is a display unit with keypad . Meter information can be toggled by different combination of short codes. Users can easily search and display metering data such as monthly usage, daily usage, present current and voltage, balance, and last five entered tokens.



As the orginal designer of DTSK150, Radarking is also supplying to other NON-STS member meter manufacturers.



Major Features

1) Standard Transfer Specification(STS) standard

2) Infrared optical and RS485 ports for interrogation

3) Disconnects on overload, tamper and credit zero

4) Programmable load limit and low credit warning level

5) Tamper prevention and event record

6) Recall 12 months historical usage data and last 5 entered token

7) Operates in both prepayment and credit mode

8) Maximum demand measurement





AMR/AMI Smart Metering Features (optional)

1) Split connection to User Interface Unit (UIU) wire or wireless

2) Plug & Play PLC/ RF/ GPRS/GSM communication module for AMR/AMI applications

3) Multi-rate and holiday settings

4) Advanced load control and disconnection features

5) DLMS/COSEM , IEC62056 standard





Technical data spreadsheet:



Electrical parameters:
Nominal voltage Un 3x220/230/240V
Limited voltage 60%~120%Un
Frequency 50 / 60Hz+5%
Basic current(Ib) 10A
Maximum current(Imax) 100A
Starting current(Ist) 30mA
Active energy constant 400imp/kWh
Accuracy
Active energy to IEC62053‐21 Class1.0
Reactive energy to IEC62053‐23 Class2.0
Power Consumption
Power consumption in Voltage circuit <2W <8VA
Power consumption in current circuit <1VA
Temperature range
Operation meter 25℃ to+70℃
Storage 40℃ to+85℃

Insulation strength
AC Insulation strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50μs mains connections 8kV

Electro Magnetic Compatibility
Electrostatic discharges
Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF fields
27MHz to 500MHz typical 10V/m
100kHz to 1GHz typical 30V/m
Fast transient burst test 4kV
Mechanical requirements
Protection Rating IP54
Insulation Classification Protective Class II
Maximum cable size 10 mm
