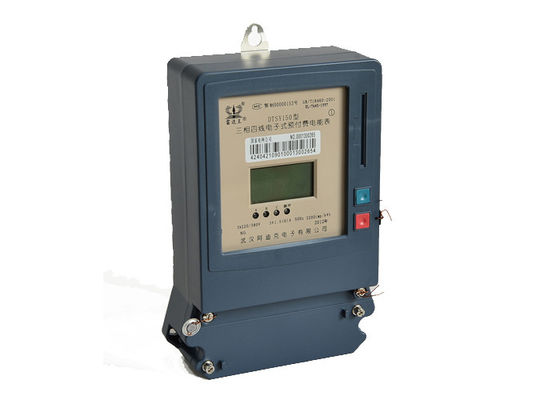

Traditional Prepaid Electricity Meter , Three Phase Four Wire Energy Meter

Traditional Prepaid Electricity Meter , Three Phase Four Wire Energy Meter
Traditional Prepaid Electricity Meter , Three Phase Four Wire Energy Meter Traditional Prepaid Electricity Meter , Three Phase Four Wire Energy Meter

Large Image :  Traditional Prepaid Electricity Meter , Three Phase Four Wire Energy Meter

Product Details:
Place of Origin: Made in China
Brand Name: Radarking
Certification: IS09001; IS014001; IEC62052-11; IEC62053-21;
Model Number: DTSY150/IC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiate
Packaging Details: Standard Package
Delivery Time: 30 days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 6000000 pcs/year
Detailed Product Description
Product Name: Digital Prepayment Electric Meter Prepayment Mode: Card Prepaid
Output Voltage: 3*220V / 230V / 240V Output Current: 3*1.5 ( 6 ) A
Standard: STS Customized: Acceptable
High Light:

Water Metering Systems

,

Prepaid Electricity System

Traditional Prepaid Electricity Meter , Three Phase Four Wire Energy Meter



Key Benefits

a) PLC/ RF / GPRS communication (On request)
b) Time of Use (TOU) , multi-tariff, holiday setting
c) Easy connection to User Interface Unit (UIU) for split type applications
d) 15 year designed life
e) Balance alarm can be set by user according to his own need



Main Features

1) Programmable under and over voltage trip
2) Enhanced tamper detection
3) Reverse energy measurement
4) Large-capacity magnetic latching relay control, measure energy in security mode
5) Tamper shutdown protection
6) Load control, over-load switching automatically
7) IP 54 rated





Technical Parameters
Nominal voltage Un
3*230V
Extended operating voltage range
80%~115%Un
Limited voltage
70%~120%Un
Nominal frequency fn
60Hz
tolerance
5%
Basic current(Ib)
10A
Maximum current(Imax)
100A
Starting current(Ist)
30mA
Active energy constant
400imp/kWh
Active energy to IEC62053‐21
Class1.0
Reactive energy to IEC62053‐23
Class2.0
Power consumption in Voltage circuit
<2W <8VA
Power consumption in current circuit
<1VA
Operation meter
-25℃ to+70℃
Storage
-40℃ to+85℃
AC Insulation strength
4kV at 50Hz during 1min
Impulse voltage 1.2/50 μs mains connections
8kV
Contact discharge
8kV
Air discharge
16kV
27MHz to 500MHz typical
10V/m
100kHz to 1GHz typical
30V/m
Fast transient burst test
4kV
Meter shell Protection Rate
IP54
Protection
classII
