|SYSTEM COMPOSITION:||Prepaid Meter, IC Card, IC Card Reader-writer And Software.||Name:||Water Metering Systems|
|Gas Meter:||For Prepaid G1.6/G2.5/G4 Gas Meter||IC Card Type:||IC Card|
|Electric Meter:||For Prepaid Single And Three Prepaid Meter||Water Meter:||For DN15/20/25mm Smart Card Prepaid Water Meter|
Smart IC Card Prepaid Metering Systems (One Smart Card for One User)

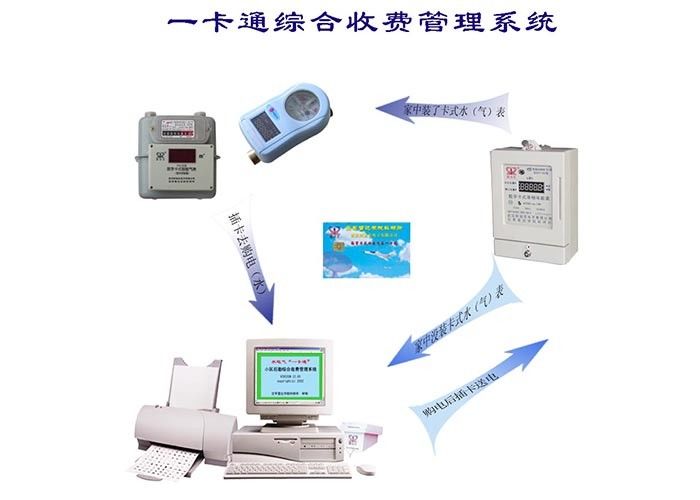

The prepaid meter system is comprised by management software, card reader, cards and prepaid meters. The prepayment system solves the billing problems by making meters paid in advance.
Systems Introduction & Application:
1-One meter for one user
One prepaid water meter is available for one user card only, blocking all other user cards. Meters usually are for family use.

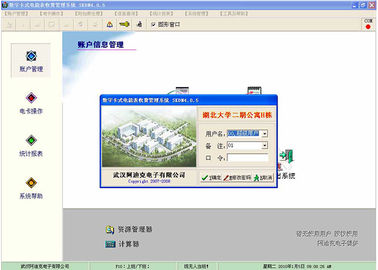

Management Software :
1 System management
2- Daily work
3- Data analysis and reports
Database and operating software installed on the same PC. This system is suitable for simple management projects which operated by few operators in a concentrated scope, such as community management sector.
Management soft ware is installed on more than one PC composed as a group connected by local area network. One of the PC is the server. This system is suitable for complex management projects which operated by many operators. Managers, operators, finance staff can participate in the processing on their own PC simultaneously.
IC Card Reader-Writer
Multi functions and built-in microcomputer, guarantee independent operation after customer registration.
Its main functions are as follows:
u Suitable for all RADARKING IC cards and prepaid meters.
u It can charge IC card or reissue IC card if lost.
u Reading, writing, deleting, revising data in IC card.
u Supporting online operation, 6000 pieces of data storage and automatically upload data to computer. When computer has an unexpected breakdown, it can support offline operation.
HOW TO USE:
1. Customer goes to fee-charging center (or power sale agency & office) and pays for the power/water/gas/heat firstly, then staff will open account for customer through software and IC card reader-writer and then give him an IC card with purchased amount and relevant user information inside.
2. Customer takes his IC card to home and swipes it on the induction area of meter and then the purchased amount will be automatically input into his meter. Then smart prepaid meter will switch on valve to supply power/water/gas/heat.
3. Meter will alarm by showing information on the LCD/LED constantly when there is no enough power/water/gas/heat inside the meter, the first time alarming amount can be set in advance. Meter will alarm again by stopping work and cut supply when reach to second alarming amount. Customer can use the remains by swiping his IC card to reactivate meter. When the remains is also used up, meter will stop work again. Customer can use again only after recharged.
The national standard of the People's Republic of China film type gas meter GB/T 6968-2011
The construction standard of town in the People's Republic of China CJ/T 112-2008 IC card gas meter for family use GB/T17215.321-2008 Grade A and Grade B Static AC Active Energy Meter
GB/T18460-2001 Prepaid Energy Meter
CJ/T 133-2007 IC Card Cold Water Meter
GB/T 778. 1-2007 Cold Water Meter
