Product Details:
Payment & Shipping Terms:
|
| SYSTEM COMPOSITION: | Prepaid Electric/water/gas Meter, RF Card, RF Card Reader-writer And Recharging Software. | STANDARD: | GB/T18460-2001 Prepaid Energy Meter ; CJ/T 133-2007 IC Card Cold Water Meter ; GB/T 778. 1-2007 Cold Water Meter |
|---|---|---|---|
| Gas Meter: | For IC Card Prepaid G1.6/G2.5/G4 Gas Meter | IC Card Type: | Contaless RF Card |
| Electric Meter: | For Prepaid Three And SIngle Phase Meter | Water Meter: | For DN15;20;25mm IC Card Prepaid Water Meter |
| High Light: | Prepaid Water System,Water Metering Systems |
||
Electric/Water/Gas RF Card Prepaid Metering System With RFCard Reader/Writer
SMART MANAGEMENT SOFTWARE:
Smart Management Software has friendly interface and is easy to learn and operate. It can support all RADARKING smart prepaid meters with many functions, such as create file, open account, deal with daily business, sale inquiry, multi inquiry, report summary, read/write card, input/collect data, print bill and check blacklist, etc.
CHARACTERISTICS:
1. Managing all the RADARKING meters, smart and strong.
2. Creating files of different meters.
3. Convenience for operator to open account, recharge, reissue card, cancel account, replace meter, etc.
4. Collecting consumption records stored by IC card reader-writer and then upload to computer for backup.
5. Inquiring sale records by daily and monthly or inquiry for any period of time.
6. Summing up total purchased amount and money of different sale regions, meters or times.
7. Automatically backup or recover data.
8. Perfect security mechanism. 3DES which often taken by international bank promise for the safety of system.
9. Friendly interface for simple operation.
10. Strong data recovery function

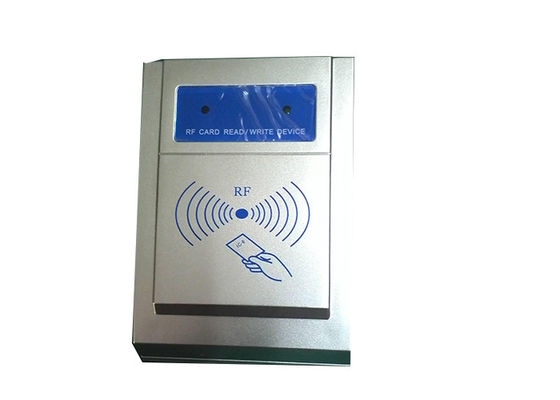

IC Card Reader-Writer
Multi functions and built-in microcomputer, guarantee independent operation after customer registration.
Its main functions are as follows:
u Suitable for all RADARKING IC cards and prepaid meters.
u It can charge IC card or reissue IC card if lost.
u Reading, writing, deleting, revising data in IC card.
u Supporting online operation, 6000 pieces of data storage and automatically upload data to computer. When computer has an unexpected breakdown, it can support offline operation.
Features:
| Read/Write contactless card, ISO14443A/B,ISO15693 |
| High security solution for access control |
| TCP/IP network version available at option |
| Compact, small, easy to use |
Specifications:
Function |
|
| Card type | ISO14443A/B, ISO15693 |
| Read distance | 0mm ~ 70mm |
| Interface | RS-232, PS2, USB, TCP/IP |
| Baud Rate | 9600(default) ~115200bps |
| Frequency | 13.56MHz |
| ERPROM | 512 bytes |
| Power | |
| Voltage | +5DVC(±10%) |
| Current | <150mA |
| Environment | |
| Temperature | Operation: 0°C~60°C, Storage: -20°C~60°C |
| Humidity | Operation: 20%~90%RH, Storage: 5%~95%RH |
| Physical characteristics | |
| Dimension | 122mm(L) x 99mm(W) x 32mm(H) |
