| Name: | RDK-CJQ Data Collector | Installation: | Direct Connected |
|---|---|---|---|
| Communication: | Wifi/GPRS/RS485/Carrier Communication Solution | Voltage: | 220V/230V/240V |
| Frequency: | 50Hz/60Hz | Smart Meter: | Electricity/Water/Gas Meter |
| High Light: | smart meter infrastructure,advanced metering system |
||

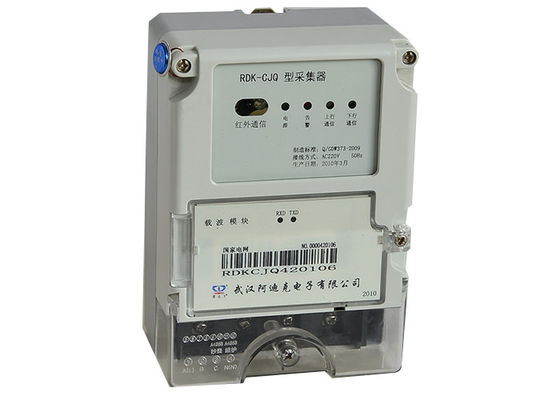

The Meter Acquisition Unit can support the maximum energy meter number) series is a device which is developed by Radarking Electronics Corp. ,is use for field data collection of RS485 Interface Meter Reading System. It is responsible for gathering code data of intelligence meter, then transfer it to DCU through the RS485 bus or power line carrier.
Meter Acquisition Unit has four communication interface: RS485 communication interface uplink, power line carrier interface (connected to the DCU) uplink, RS485 bus communication interface (connected to the power meter) downlink, IR infrared communication interface (for local copy of data and collector set).
Features:
1. Storage Capacity
Each Meter Acquisition Unit can read maximum number of meter is 128 pcs, On the basis of the maximum number, the unit can store at least 60 days freezing electricity at 00:00, and 6 months freezing consumption at 00:00 of the end of each month.
2. Re-collection and alarm
The Meter Acquisition Unit is able to re-collect the failed reading data within the defined interval. In the case of the re-collection is failed, the Unit will alarm to Master station.
3. Self-diagnosis and exception logging
The unit is capable of automatic self-test, if there is any problem, the unit will record it while alarm to Master station.
4. Safety
The design of the unit is reliable has reliable which provides the security measures to prevent unauthorized personnel to set parameters.
The Unit has the capacity of storage of the lately 1500 event logs.
5. Remote control function
The unit can power off the meter according the command from master station, if there is a relay in the meter
| Operating voltage | Single Phase 220VAC ± 30% |
| Operating frequency | 50Hz ± 5% |
| Active power (without communicating) | ≤ 1.2W |
| Apparent power | ≤ 10VA |
| Operating temperature | -25 °C ~ +55 °C |
| Storage temperature | -30°C ~ +60 °C |
| Relative humidity | ≤ 95% |
| Radiated electromagnetic field immunity | 80MHz-1000MHz, field strength 10V / m |
| ESD immunity | > 8kV |
| Surge immunity | > 4.0kV |
| Fast electrical pulse immunity | > 4.0Kv |
| Life | > 15 years |
| Security | the PC alloy shell fire |
| Dimensions | 159mm × 109mm × 54mm |
