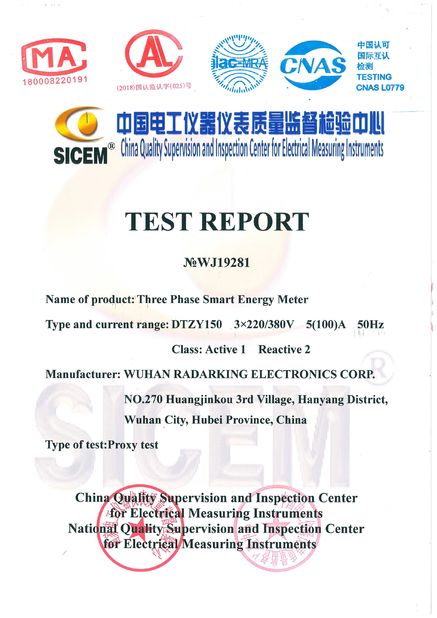

China WUHAN RADARKING ELECTRONICS CORP. certification
China WUHAN RADARKING ELECTRONICS CORP. certification
Really profession in the meter industry, gave us so many useful advice in the AMI solution, very good!

—— George

The meters are good, simple but useful, and also good in after service, each of my question or requirement can be solved well! Thank you for cooperate

—— Amitansu

I'm Online Chat Now

Water / Electricity Prepaid Self-Service Recharge Machine for User Convenience

Water / Electricity Prepaid Self-Service Recharge Machine for User Convenience
Water / Electricity Prepaid Self-Service Recharge Machine for User Convenience

Large Image :  Water / Electricity Prepaid Self-Service Recharge Machine for User Convenience

Product Details:
Place of Origin: Made in China
Brand Name: Radarking
Certification: ISO9001, ISO4001
Model Number: RDK
Payment & Shipping Terms:
Minimum Order Quantity: 1 nos
Price: Negotiate
Packaging Details: Standard Package
Delivery Time: 35 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000000 pcs per year
Detailed Product Description
Content: Prepaid Self-Service Recharge Machine, IC Card Installation: Direct Connected
Gas Meter: Smart Gas Meter With G1.6/G2.5/G4/G6 Water Meter: Smart Water Meter With DN15, 20, 25mm
Electric Meter: Smart Electriity Meter For Single And Three Phase Card: IC Card
High Light:

automated metering infrastructure

,

smart meter infrastructure

Water / Electricity Prepaid Self-Service Recharge Machine for User Convenience

Description:
The traditional water and electric meter prepayment comprehensive charge management system requires staff to operate on a desktop computer for pre-sale of water and electricity, in order to write the information(the purchased electricity/water amount/fees) into the IC card. If the staff gets off work or rests on holidays, the user cannot purchase electricity/water(Recharge), which affects the user’s normal use of electricity and water.

1. Main function and features.
1.1 Using the screen touch method, the operation is intuitive and simple.
1.2 Banknote identification, support all face value of RMB in the current market (can be modified by configuration to support the face value of the banknotes).
1.3 Network sales, multi-terminal sharing recharge information. After recharged successfully, you can check the recharge result directly on the self-service recharge machine.
1.4 Provide the recharge voucher. After recharged successfully, the recharge voucher can be printed.
1.5 High security, record the operation log. If recharged unsuccessfully, the operation history is automatically saved and fixed to the operation failure page for the maintenance personnel to judge the problem.
1.6 Full recharged process will tale voice broadcast.
1.7 Support surcharge and bundle charge when customers processing the recharge, solved the problem of difficulty in charging.
1.8 Blacklist management mechanism. Blacklist users are only allowed to recharge in the window.
1.9 Rights control, only the user's own recharge record is allowed to be queried.
1.10 Support the statistics of the total recharge amount of each self-service recharge machine in the window every day, so as to check whether the banknotes are correctly taken out from the self-service recharge machine.

2. Specifications and main technical parameters
2.1 Cabinet: Cold-rolled steel plate material, hard and thick, not easy to deform.
2.2 Main control module: 17-inch touch screen, high-performance industrial computer.
2.3 Voice module: Multimedia speaker.
2.4 Monitoring module:High-definition color micro-camera, video resolution 800 × 600.
2.5 Thermal printer: Printing paper width 80 mm.
2.6 Banknotes recognizer: Recognizes 1, 5, 10, 50, 100 yuan market circulation RMB (Can set the denomination of the banknote, such as only 100 yuan); Receiving rate ≥ 98%, reading life > 1.8 million Times.
2.7 UPS power supply: Output power 500W, power backup time ≥ 15 minutes.
2.8 Input power: AC220V ± 10%, 50HZ ± 5%.
2.9 Working environment temperature: -10℃ to + 50℃; Relative temperature: 35% ~ 85%.
2.10 Card reader: Support SLE4442 card, CPU card, M1 card.

Characteristic:
1. Supporting data reading scheme and parameter setting scheme management; The system may implement data reading and parameter setting as per the preset data reading scheme and parameter setting scheme.
2. Supporting data reading and parameter setting to meters via HHU, capable of uploading read data by the HHU to the master station for the users to enquire and print;
3. Supporting import and export of meter type protocol data, convenient to add meter type connection system;
4. Supporting various communication channels: RS485, RS232, Optical head, Wireless, CSD, GPRS;
5. Supporting DLMS/COSEM and IEC62056-21(IEC 1107 in short) protocols;
6. Provided with good expansibility, compactable with all kind of meter types and protocols;
Function:

System ManagementMaintenance and management of relevant parameters of system, mainly including operator password changing, meter type data import and export.
Parameter ManagementMeter data reading and parameter setting management, mainly including data reading, parameter setting, operation to designated meters, data reading scheme and parameter setting scheme management.
HHU ManagementManagement to the HHU related data, mainly including HHU register, HHU operator management, HHU data reading scheme management, HHU parameter setting scheme management and HHU data upload and download.
Statistics StatementSupporting the enquiry and statistics by the users to the user file data, meter file data, meter data read and parameter set, capable of statement print and export to Excel for the enquired results.
File ManagementThe management to the relevant file data in the system, mainly including operator file, user file, meter file, station file and communication scheme management;
On-line helpsHELP E-menu to assist user operation.


FAQ:
1. Q: What kind of payment do you accept ? Can I pay RMB ?
A:Payment <=1000USD,100% in advance. Payment>=1000USD,30%T/T in advance,balance before shipment.Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem.
2. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.That’s a Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.
3. Q: Can I become an Agent / Dealer of FOHMQ products?
A: Welcome! But please let me know your Country/Area first,We will have a check and then
talk about this.If you want any other kind of cooperation,do not hesitate to contact us.

4. Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before. And we made many moulds for our customers alread. About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.

Why Choose Us:
1. Listed company with 16 years experinece in smart meter field.
2. Annual output 4 million pieces smart meters. On time delivery can be guaranteed.
3. Support by professional and stength R&D team.
4. Your inquiry related to our products or prices will be replied in 24hours
5. Well-trained and experienced staffs to answer all your inquiries
6. OEM&ODM,any your customized lightings we can help you to design and put into product.
